User Registration

Registration Process

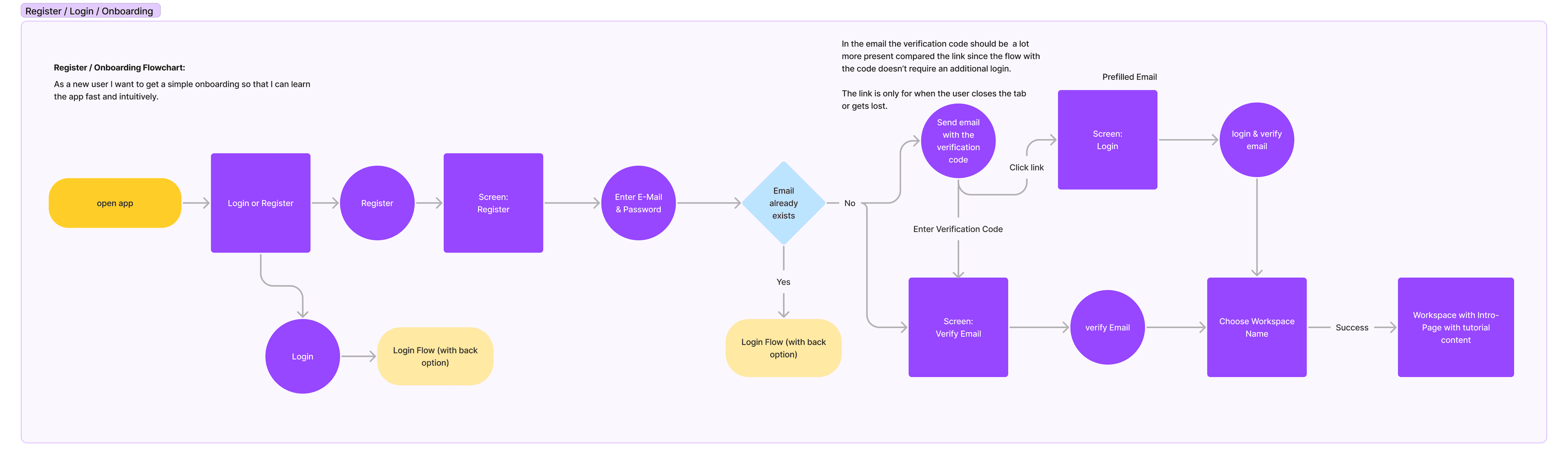

Registration flow Note: best to open in a separate tab

Design goals

  • The user should be able to register with a username and password.
  • During the process a main device, device and a userChain should be created and attached to the user. No man in the middle attack should be possible resulting in a different main device or user chain or one of these being attached to a wrong sessionKey.
  • In case the user signs up from a workspace invitation page, the user should be automatically added to the workspace without the server or a man in the middle being able to change the workspace the user is added to.

Cryptographic Dependencies and actual implementation

  • opaque_registration: OPAQUE registration flow
  • kdf: sodium.crypto_kdf_hkdf_sha256_expand(sodium.crypto_kdf_hkdf_sha256_extract(key, subkeyId), context, crypto_aead_xchacha20poly1305_ietf_KEYBYTES)
  • noncegen: sodium.randombytes_buf(sodium.crypto_secretbox_NONCEBYTES)
  • signingKeyPairGen: sodium.crypto_sign_keypair()
  • encryptionKeyPairGen: sodium.crypto_box_keypair()
  • sign: sodium.crypto_sign_detached(message, privateKey)
  • encrypt: sodium.crypto_secretbox_easy(message, nonce, key)
  • createUserChain: see user-chain

Steps without workspace invitation

exportKey = opaque_registration();
encryptionKey = kdf(1111, "m_device", exportKey);
nonce = noncegen();
// create device
deviceSigningKeyPair = signingKeyPairGen();
deviceEncryptionKeyPair = encryptionKeyPairGen();
deviceEncryptionPublicKeySignature = sign(
ciphertext = encrypt(

The following information is sent to the server:

  registrationRecord, // OPAQUE registration record
  encryptedMainDevice: {
} (opens in a new tab) (opens in a new tab)

The server stores this information in the database in the UnverifiedUser table and triggers an email with a verification code.

On the client side the username, password and createChainEvent are stored in memory. (opens in a new tab) (opens in a new tab)

After that client is redirecting to the registration verification page. (opens in a new tab)

From here on there are two different paths depending on if the user:

  1. Enters the code into the current session (with the username, password and createChainEvent stored in memory)
  2. Open the link from the email directly.

Flow 1

The user enters the verification code and submits the form. The server checks the code and if it is valid, it creates a new User record in the database and the user finished the registration process. The verifyRegistration mutation only requires the username and the verification code. There are some concerns if this could be abused, but no valid use-case was found so far. (opens in a new tab)

After that the client is automatically logged in based on the username and password stored in memory. (opens in a new tab) (opens in a new tab)

The user is done in this case and redirected to onboarding.

Flow 2

In case the user open the email link the username and verification code are part of the query parameters and the user lands on the RegistrationVerificationScreen. The verifyRegistration mutation can be triggered and since on the server only the username and the verification code are required this can be done without being logged in. There are some concerns if this could be abused, but no valid use-case was found so far. (opens in a new tab)

The user is sent to the login page where the password from before has to be entered. This triggeres the login process as described in the user authentication section in the documentation.

Password Complexity

In order to secure the exportKey from being brute-forced a certain level of password complexity is checked upon registration. The (opens in a new tab) project is used to determine the complexity. It is based on Dropox's zxcvbn (opens in a new tab), written in Typescript, actively maintained and used by other projects e.g. Clerk (opens in a new tab).

Configuration: (opens in a new tab) Evaluation: (opens in a new tab)

The highest score (4 - very unguessable: strong protection from offline slow-hash scenario. (guesses >= 10^10)) must be reached before a user can register: (opens in a new tab)

Why is this important?

With a weak password a compromised server could brute-force the exportKey and decrypt the user's data. This would break the end-to-end encryption.

Brute-forcing would work by running the OPAQUE login flow again and again using a different password. An attacker would need the registration record and the opaque serverSetup containing the OPRF seed and server private key.

Opaque Server Public Key Verification

In order to make sure the user is talking to the correct opaque server the server's public key is verified. (opens in a new tab) (opens in a new tab)
